GRADUATIONS

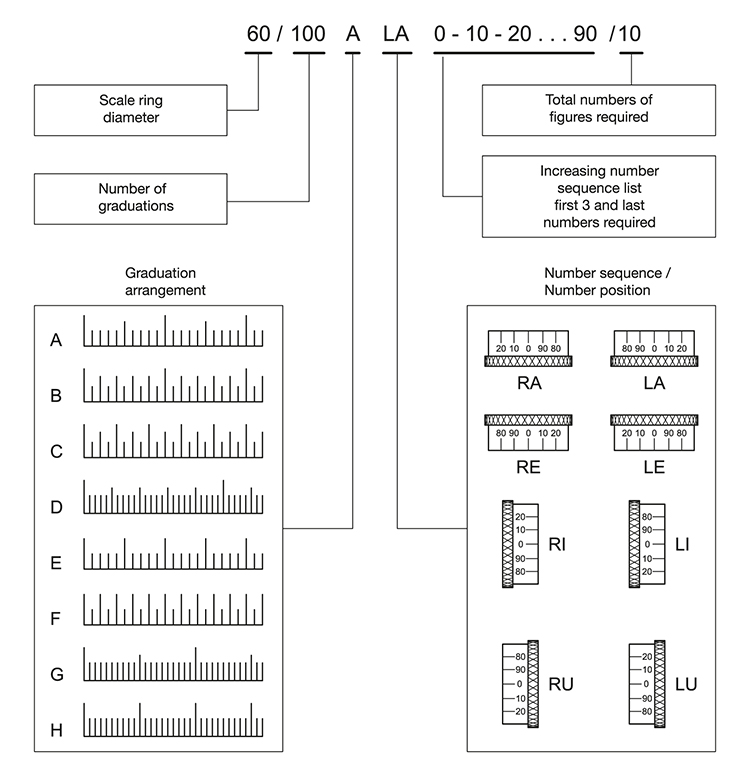

Graduations can be laser-engraved on the plain surface of the control knobs and on plain flanges with high-precision and perfect readability. The graduations, consisting of marks and numbers, are available as indicated in the diagram here below. All the graduations are available for minimum quantities that depend on the size of the knob and on the type of graduation chosen. These quantities are determined during the quotation analysis.

Graduations can be engraved on the following elements:

  • GN 164
  • GN 726.1
  • GN 726.2
  • IZP.
  • IZN.380
  • F.N - F.K - F.GS
  • GN 264
  • GN 436.1
  • GN 723.4
  • GN 736.1
  • GN 727
  • GN 200
  • GN 700

To create graduations on other elements, special graduations, symbols or personalisations, please contact the ELESA+GANTER sales departments.

Order example

How to order a graduation on a scale ring GN 164 knob with:

  • diameter 60 mm
  • 100 marks
  • graduation type A
  • sequence/graduation position type LA
  • figures engraved from 0 to 90 for a total of 10 numbers.

Information

The size of numbers and length of graduations depend on the number of graduations, quantity of numbers and the scale ring diameter.
