Double tube linear actuators

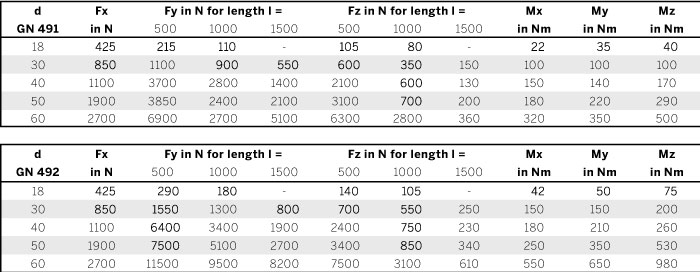

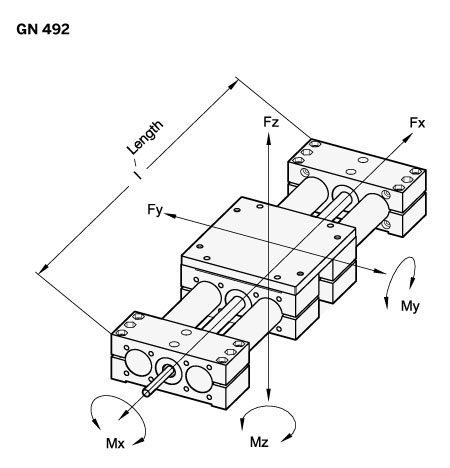

The specified forces Fy and Fz cause a flexure of the guide tube of approx. 0.5 mm.

DESCRIPTION

The slider is moved via a bearing-type trapezoidal thread spindle and a guide nut. The slider is guided through two parallel chrome-plated tubes, resulting in a high load capacity and allowing high bending moments to be compensated by the linear actuator.

For type GN 492, a second slider and an adapter plate extend the options for applications.

These double tube linear actuators have been designed for manual operation (handwheel). With the appropriate lubrication, they can also absorb rotary spindle speeds of as much as 250 rpm.

The positioning accuracy is 0.2 mm / 300 mm travel, the maximum reverse play is 0.1 mm.

To measure the adjustment or the positioning, digital position indicators DD52R / DD51 / DD52R-E / DD51-E may be attached. The required extension of the shaft journal is enabled by installation kits GN 491.1.

Further information see on the standard pages of GN 491 / GN 492.

DESCRIPTION

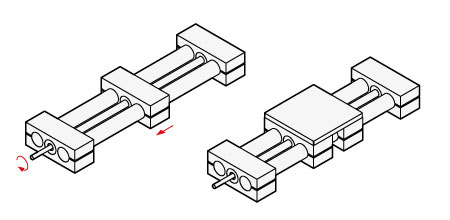

Double tube linear actuators GN 491 / GN 492 with right or left hand thread, single shaft end or two shaft ends.

DESCRIPTION

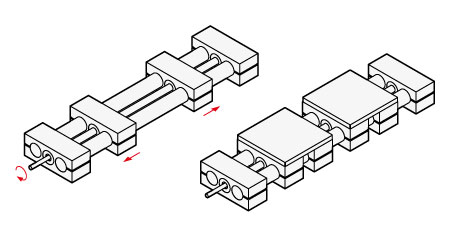

Double tube linear actuators GN 493 / GN 494 with right and left hand thread, single shaft end or two shaft ends, both sliders move symmetrically.
On request:
Double tube linear actuators GN 493 / GN 494

DESCRIPTION

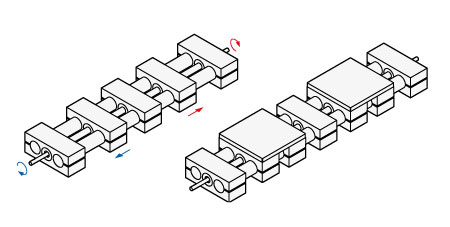

Double tube linear actuators GN 495 / GN 496 with two separate spindles, each with right or left hand thread, both sliders move independently of each other.
On request:
Double tube linear actuators GN 495 / GN 496.
